Sailpack Raymarine i70S

Marine spare part and equipment for Sailpack Raymarine i70S.

The Raymarine i70s multifunction display features a vibrant 4.1-inch LCD screen that provides a wide viewing angle and enhanced visibility, ensuring clarity in all weather conditions. Its user-friendly interface, equipped with elevated buttons, allows for precise operation. The screen can be customized to display various data sources tailored to your boat's specific requirements and characteristics. It is capable of presenting both analog and graphical data and functions as an AIS repeater.

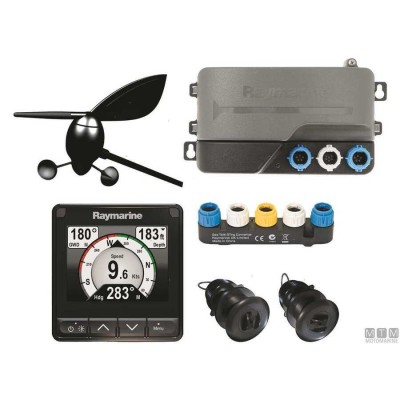

With SeaTalk and NMEA2000 connectivity, it integrates seamlessly with other onboard devices. The package includes a screen cover and a mounting kit. The System Pack version also includes transducers, providing a complete system with a single display, which encompasses the display itself, a multi-conversion pod for up to five transducers, a P319 depth transducer for hull mounting, an ST900/P120 speed/temperature transducer for hull mounting, and a wind transducer.

The RAYMARINE i70 Sailpack features a large 4-inch LED-backlit LCD display that maximizes viewing area while minimizing space requirements. The i70 instruments are designed for energy efficiency, consuming 40% less power than previous models while offering superior brightness and size. With a backlight brightness of 700 nits, the screen ensures excellent visibility, even in the harshest tropical conditions.

Navigators will appreciate the rich graphics of the i70, which offer options for digital instrument displays, graphical, or virtual analog formats. The 4-inch screen features an impressive digit height of up to 2 inches (50 mm), facilitating easy reading of data from instruments mounted on mast pods, upper consoles, or other locations frequently viewed from a distance.

The i70 offers multiple color palettes to optimize visibility under various lighting conditions, along with convenient group dimming control, allowing for simultaneous dimming of multiple instruments during night navigation.

The i70 instruments complement the new multifunction displays in the E7 series, both designed to maximize screen size within a compact housing. The sleek i70 instruments feature a modern aesthetic that enhances the appearance of contemporary yachts and luxury motorboats. They also pair well with the new p70 and p70R autopilot controllers, which feature button or rotary knob inputs.

In addition to traditional displays for readings of depth, speed, wind, and compass, the i70 can repeat a multitude of data from devices such as GPS receivers, navigation systems, weather stations, engines, and tank level monitoring systems. The AIS repeater screen works with NMEA2000 compatible Automatic Identification System (AIS) receivers, providing a graphical representation of the 25 closest AIS targets, with easy access to detailed information for each target.

The i70 instruments facilitate easy selection of data sources, which is especially beneficial for captains seeking redundant data sources for critical information such as GPS position or water depth.

The i70 instruments utilize Raymarine’s exclusive SeaTalk NG network, ensuring straightforward installation and integration with other onboard systems. This optimized network architecture provides reliable performance and easy compatibility with third-party NMEA2000 devices.

Key Features of the i70:

• Digital and graphical views for wind, depth, speed, AIS targets, engine data, fuel levels, and GPS navigation.
• Ultra-bright 4-inch color display, visible under sunlight, with LED backlighting.
• 30% larger than the previous generation and competitors' displays.
• Wide horizontal and vertical viewing angles of 160 degrees.
• Extra-large full-screen characters measuring 1.7 inches (43 mm) high for easy readability.
• Low power consumption: 150 mA / 1.6 W typical, 27% less than previous color instruments.
• Simple installation using a hole saw cut.
• Incorporates Raymarine's new DNA industrial design with sleek, low-profile displays that integrate seamlessly with Raymarine MFDs.

AIS Integration of the i70:

The i70 is the world’s first instrument to feature AIS repeater capability. It uses AIS data from AIS receivers compatible with SeaTalkng or NMEA2000, providing plug-and-play connectivity with Raymarine AIS350 and AIS650.

• Display targets for any vessel equipped with AIS.
• Show voyage information transmitted by these targets, including position, course, speed, and rate of turn.
• Access basic or detailed information for each target vessel, including critical safety data.
• Set a safety zone around your vessel.
• View AIS alarms and messages related to safety.
• Activate silent mode with the Raymarine AIS650.

i70 LightHouse User Interface:

The exclusive LightHouse user interface from Raymarine is easy to use, with an intuitive menu structure that places frequently used functions at your fingertips. A straightforward setup assistant ensures proper calibration and configuration, while up/down arrows allow for easy navigation between available pages. The “Rollover” feature automatically cycles through graphical and digital data pages, maintaining consistency across platforms with the e7 MFD.

i70 Networking Functions:

• Supports SeaTalkng, SeaTalk, and NMEA2000.
• Connects with SeaTalkng transducer pods from Raymarine or intelligent SeaTalkng transducers.
• Synchronizes brightness control and color palette for groups of i70 and p70 instruments, as well as with e7 MFDs.
• The Multiple Data Source (MDS) function allows for preferred data source selection when multiple sensors are present on the network.

Specifications for the 4" i70 Multifunction Instrument:

• Power: Nominal supply voltage: 12 or 24 V DC
• Operating voltage range: 10.7 to 32 V DC
• Current: 132 mA
• Power consumption: 1.6 W
• Environmental conditions: Operating temperature: -25 °C to 55 °C (-13 °F to 131 °F)
• Storage temperature range: -30 °C to 70 °C (-22 °F to 158 °F)
• Relative humidity: max. 93%
• Waterproof: IPX6
• Physical: Display: TFT LCD display, 16-bit color (64k colors)
• Resolution: 320x240
• Brightness: 700 cd/m²
• Connections: Data connections: 2 x SeaTalkng ports (fully compatible with NMEA2000 and SeaTalk specifications)
• Approvals: Compliance: Europe 2004/108/EC
• Compliance: Australia and New Zealand C-Tick, level of compliance 2

The i70 System Pack (Wind, Depth, and Speed Transducers):

• E22172 Multifunction Instrument i70
• E70010 ITC-5 Transducer Converter
• E22078 Standard Forward Wind Transducer with 100-foot cable
• A22154 (DST800) Analog Output Transducer
• A06049 SeaTalk NG Power Cable
• A06031 SeaTalk Terminator for ST70
• A06074 Inline STNG Terminator
• A06068 STNG Backbone Cable, 9 m

This comprehensive description of the Raymarine i70s multifunction display highlights its advanced features and capabilities, making it an excellent choice for boat owners seeking reliable, high-quality equipment.
