Hydraulic Pump Vetus MTP089
- Stock: En stock
Hydraulic Steering Systems for Workboats

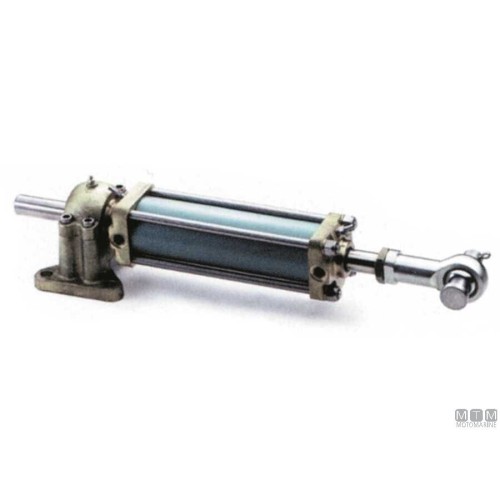

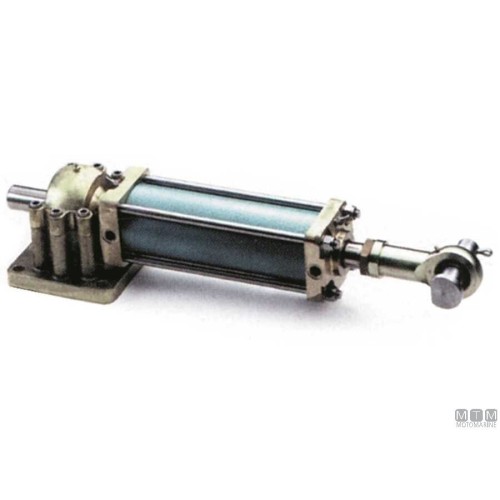

Our hydraulic steering systems for workboats are meticulously engineered to deliver reliable and efficient steering solutions. Each system comes with a complete cylinder and a flexible hose equipped with 1/2" female thread connections, easily connecting to 18x15 mm copper tubes. It is essential to consider the maximum torque of the rudder when selecting a system.
The steering pump features 1/2" female thread connections and a stainless steel shaft measuring 1" (25 mm). Your choice of pump should be based on the number of turns required from lock to lock on the steering wheel. The accompanying table outlines the steering wheel turns for each combined cylinder, organized by size, starting from the smallest.
Our hydraulic steering unit for commercial vessels boasts an impressive axial piston of seven pistons and an 89cc pump. It incorporates a high-quality stainless steel shaft, suitable for large steering wheels with a tapered diameter of 1".
The system is supplied with compression fittings for 18 mm OD copper pipes or 1/2" BSP connections.
High-Performance Vetus MTP Hydraulic Steering Pumps for Commercial Vessels
The high-strength Vetus MTP hydraulic steering pumps are specifically designed for commercial vessels, offering robust and high-performance steering solutions. These pumps are available in three models: MTP89, MTP151, and MTP191. Each model provides varying performance levels, allowing you to select the ideal combination of cost and steering wheel revolutions. Typically, smaller pumps offer more steering wheel revolutions, while larger pumps deliver greater torque and efficiency.
Key Features:
- Suitable for one or two control positions
- Cylinder and pump can be supplied separately
- The number of steering revolutions is detailed in the table below
- Seven-piston axial piston pump
- Stainless steel pump shaft, compatible with large steering wheels
- Includes accessories for copper pipes for easy installation
- Quick and easy steering with coupling cylinders
- Durable stainless steel constructed cylinder shaft
- Articulated cylinder body and mounting plate to accommodate installation inaccuracies
Performance Options:
| Type of Pump | Performance | Number of Pistons | Max Pressure | Control Unit Size | Connection | Weight | Minimum Steering Wheel Diameter |
|---|---|---|---|---|---|---|---|
| MTP89 | 89 cm³/rev | 7 | 63 kg/cm² (6178 kPa) | Ø18 x 15 mm | G 1/2 female thread | 9.1 kg | 65 cm |
| MTP151 | 151 cm³/rev | 7 | 63 kg/cm² (6178 kPa) | Ø18 x 15 mm | G 1/2 female thread | 23 kg | 110 cm |
| MTP191 | 191 cm³/rev | 7 | 63 kg/cm² (6178 kPa) | Ø18 x 15 mm | G 1/2 female thread | 23 kg | 135 cm |
This comprehensive overview of our hydraulic steering systems and pumps ensures that you can make an informed decision tailored to your specific needs. If you have any questions or require further assistance, please do not hesitate to contact us.
