Hydraulic Cylinder Vetus MTC125
- Stock: En stock

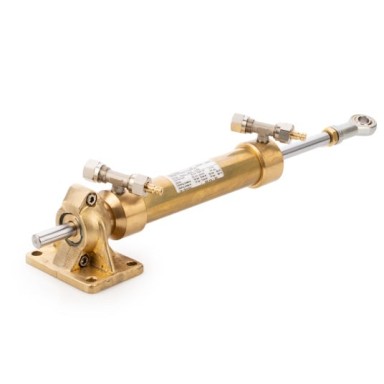

Introducing the Vetus MTC12510 high-quality bronze hydraulic cylinder, meticulously designed for large yachts and workboats. This robust cylinder features a galvanized rod end, with an option to upgrade to stainless steel for enhanced durability.
Equipped with compression connections that include bleeders, maintenance has never been easier, ensuring your marine systems function optimally.
Marine Benefits
- Durable Construction: Crafted from high-quality materials, this hydraulic cylinder ensures long-lasting performance even in harsh marine environments.
- Corrosion Resistance: The option of stainless steel improves resistance against saltwater, extending the lifespan of your equipment.
- Enhanced Usability: Easy maintenance through built-in bleeders keeps your system leak-free and efficient.
- Reliable Performance: Ideal for steering larger vessels, this cylinder provides precise control on the water.
Technical Details
Specifications include:
- Stroke: 160 mm
- Volume: 253 cm³
- Steering Arm Length: 140 mm
- Rod End Thread: M20
- Weight: 7.1 kg
Maximum Torque: 1226 Nm (125 kgm) (904 ft.lbs)
Torque at 35° and 56 kg/cm²: 981 Nm (100 kgm) (723 ft.lbs)
Pressure: 5492 kPa (56 kg/cm²) (797 lbs/sq.in)
Compatibility
This hydraulic cylinder is compatible with various steering systems. For specific steering wheel turns with HTP pump models:
- HTP30: 8.5 turns
- HTP42: 6.1 turns
In conclusion, the Vetus MTC12510 hydraulic cylinder is an exceptional choice for enhancing the performance of your large yacht or workboat. Invest in reliability and functionality for your vessel’s steering system today.
