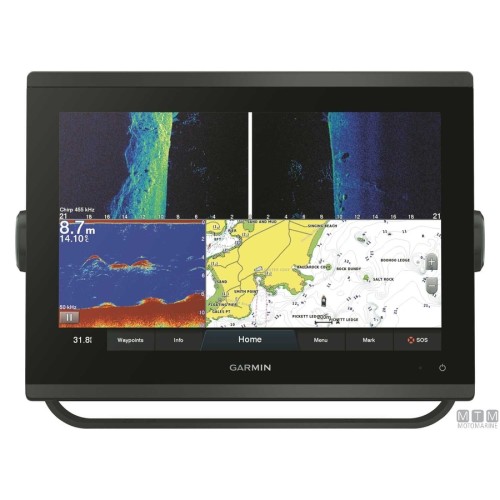

Garmin GPSMAP 1223xsv
The Garmin GPSMAP® 1223xsv is an advanced chartplotter and fishfinder that features SideVü, ClearVü, and traditional CHIRP sonar capabilities, complemented by a comprehensive world base map.
With a 12-inch touchscreen equipped with IPS technology and bonded glass, this device offers a resolution of 1280 x 800 pixels, enhanced by high backlighting and an anti-glare finish for optimal visibility.
Integrated with a GPS receiver and a 1W CHIRP module, the GPSMAP 1223xsv is compatible with a variety of transducers, including traditional models, All-in-One, Panoptix, and UHD. It supports Garmin BlueChart and Garmin Navionics+ mapping, ensuring access to detailed navigation information.
The unit features two microSD slots, a USB port, an HDMI port, a J1939 port, and wireless connectivity options, along with compatibility with NMEA2000, Garmin Marine Network, and ANT. This seamless integration ensures that all onboard systems work harmoniously together.
Key features include:
- Auto Guidance
- Active Captain
- Sail Assist
- Quickdraw Contours
- OneHelm functionalities
These features enhance your navigation experience significantly. The package is complete with an adjustable mount, a flush mounting kit, a screen cover, and a power/data cable. Please note that a transducer must be purchased separately.
Specifications:
- Dimensions: 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)
- Weight: 6.6 lbs (3.0 kg)
- Water Rating: IPX7
- Touchscreen Type: WXGA
- Screen Size: 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
- Screen Resolution: 1280 x 800 pixels
- Mounting Options: Bail, flush, or flat (please note that Garmin does not provide hardware or accessories for flat installations; professional tools and expertise are required).
This advanced chartplotter and fishfinder is designed to meet the needs of serious mariners, providing reliable performance and comprehensive features for both navigation and fishing.
