Garmin echomap uhd2 72cv + GT20-TM
- Stock: En stock

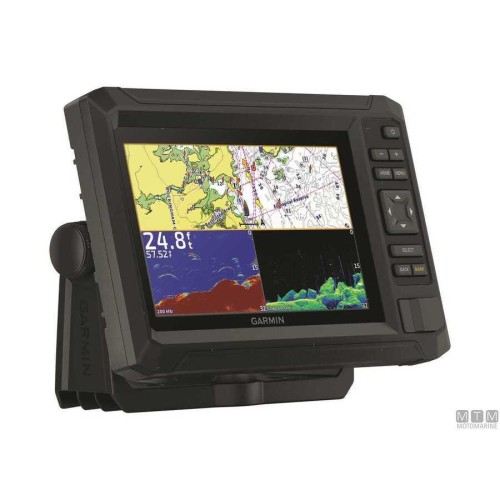

Introducing the Garmin echoMAP UHD2 72CV, a sophisticated chartplotter and fishfinder equipped with a vibrant 7-inch touchscreen display boasting a resolution of 800x480 pixels. This device integrates a built-in keyboard and GPS receiver, alongside a powerful 500W CHIRP sonar, ClearVü, and an UHD module. It is fully compatible with all Garmin BlueChart and Garmin Navionics+ cartography, offering seamless wireless connectivity and support for NMEA0183/2000 and Fusion-Link. The echoMAP UHD2 integrates flawlessly with all onboard systems.
This latest Garmin model is compact yet powerful, available with either a 5 or 7-inch screen. With 500 watts of scanning power, it is ideal for anglers eager to explore both the waters in front of them and those beneath the surface. The echoMAP UHD2 series maintains the sleek design of its predecessors, providing a modern user interface, intuitive button operation, and enhanced graphics. The bright display remains easy to read even in direct sunlight.
The echoMAP UHD2 equips fishermen with everything they need for a successful fishing trip, including crisp real-time sonar views, quick map redraws, and support for Garmin Navionics+ cartography. It is suitable for all inland and coastal waters.
Simple Operation
The device features a bright 7-inch screen with buttons that allow for effortless control. Marking important waypoints and switching between different map views while fishing has never been easier.
Clear Imaging

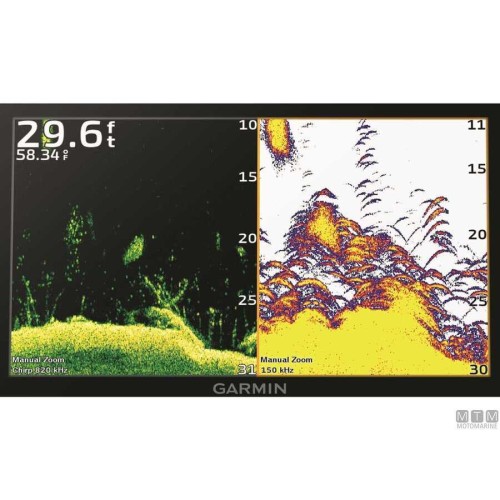

Traditional CHIRP and ClearVü sonar images are exceptionally sharp, ensuring that no fish can hide. High-contrast sonar signals in vibrant colors make it easy to distinguish between fish and underwater structures.
Connected Experience
The echoMAP UHD2 supports network connectivity thanks to its built-in Wi-Fi, allowing users to share sonar data, waypoints, or routes between two echoMAP devices. Users can also connect to the free ActiveCaptain app, which provides access to additional features like OneChart™, Smart Notifications, software updates, and the Garmin Quickdraw community.
Stay on Course

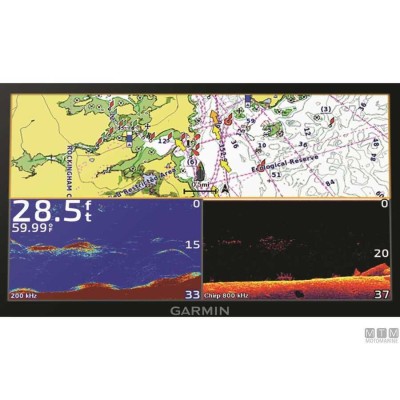

With Garmin Navionics+ and Garmin Navionics Vision+ nautical charts, you will always stay on track while gaining valuable insights about the waters you navigate. The device includes Auto Guidance+ technology and can track up to 5,000 waypoints. The preinstalled Quickdraw Contours mapping software is a standout feature, creating real-time fishing maps while the boat is in motion and displaying previously explored areas directly on the chartplotter. You can share your own maps with the ActiveCaptain community and exchange waypoints if desired.
Technical Specifications
- Screen Size: 7" (155 x 87 mm)
- Screen Type: WVGA, TN
- Resolution: 800 x 480 px
- Power Supply: 9-18 V DC
- Current Consumption: 1 A (typical), 1.5 A (maximum)
- Power Consumption: 18 W
- Sonar Power: 500 W
- Sonar Frequencies: CHIRP: 70/83/200 kHz; ClearVü: 260/455/800 kHz
- Transducer Port: 4 pins
- GPS: Yes, integrated
- Cartographic Support: Yes
- Charts: BlueChart g3, BlueChart g3 Vision, Garmin Navionics+, Garmin Navionics Vision+
- Card Slot: 1x microSD
- Water Resistance Rating: IPX7
- Dimensions: 232 x 143 x 67 mm
- Weight: 0.7 kg
Included in the Package
- echomAP UHD2 72cv
- GT20-TM Transducer
- Power/data cable
- Tilt/swivel mount
- Gasket and hardware for flush mounting
- Documentation
The echoMAP UHD2 is designed to enhance your fishing experience, providing you with the essential tools for success on the water.
