Electronic freshwater pump Marco UP66/E-DX

Marine spare part and equipment for Electronic freshwater pump Marco UP66/E-DX.

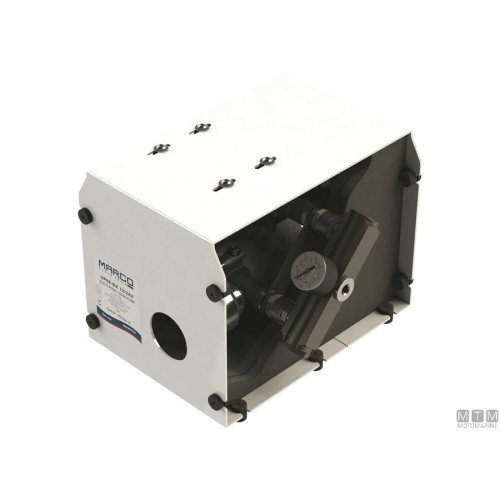

MARCO UP66/E-DX - Dual Electronic Pump - 17.4 GPM - 50.8 PSI - 24V

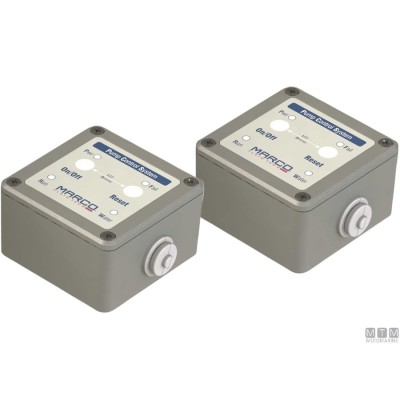

The MARCO UP66/E-DX dual electronic freshwater pump is designed for exceptional efficiency and performance. Featuring a dual PCS control panel, it allows for remote monitoring and interaction with the pump.

This electronic control system ensures optimal power consumption, significantly reduced noise levels, and consistent pressure control without the need for an accumulator tank. Additionally, it is equipped with an automatic shut-off mechanism in the absence of liquid, minimizing component wear and extending the lifespan of the system.

This pump is suitable for both freshwater and saltwater applications and operates with a universal power supply of 12/24V.

Benefits:

• Self-priming water pressure system with two interconnected pumps.
• Electronically controlled motor speed based on flow rate.
• Reduced energy consumption and noise levels.
• No accumulator tank is required, simplifying installation and maintenance.
• Overload protection for enhanced safety.
• Operational monitoring via dual LED indicators, including a 'tank empty' alert and shutdown device.

Key Features:

• Motor speed adjusted according to flow rate
• Delayed activation for auxiliary pump
• Compact design for easy integration
• Minimal noise output for quiet operation

Specifications:

• Voltage: 24V
• Current Consumption: 15A
• Fuse Rating: 25A
• Self-Priming Capacity: 6.6 ft
• Flow Rate: 17.4 GPM
• Pressure: 50.8 PSI
• Ports: 3/4" BSP
• IP Protection Rating: 67
• Motor Power: 180W + 360W
• Weight: 28.7 lbs
• Dimensions:
• Length: 11.6 in (297 mm)
• Height: 11.8 in (300 mm)
• Width: 10.2 in (260 mm)

Choose the MARCO UP66/E-DX for your water application needs and experience unparalleled efficiency, durability, and performance.
