Bow Thruster Quick BTQ 300-250 24v

Marine spare part and equipment for Bow Thruster Quick BTQ 300-250 24v.

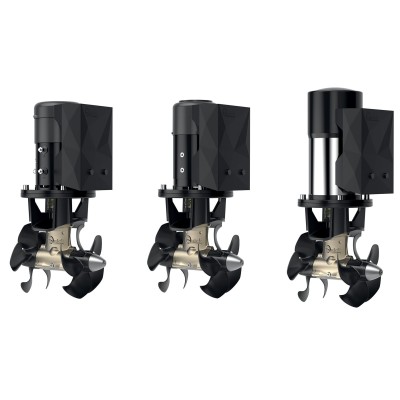

Quick BTQ300 Bow Thruster with Dual Counter-Rotating Propellers

The Quick BTQ 300 Bow Thruster is expertly designed for large vessels measuring between 20 and 30 meters (65-99 ft). It features a dual propeller system that delivers exceptional thrust capabilities: 250 kgf for boats ranging from 20 to 26 meters and 270 kgf for those from 23 to 30 meters. Operating on a 24V power source, a 48V electric motor option is also available upon request, ensuring flexibility for your specific requirements.

With a tunnel diameter of 300 mm, this bow thruster guarantees smooth and efficient operation even in challenging conditions. As part of the advanced BTQ series, the Quick BTQ 300 showcases propellers that rotate in opposite directions within the tunnel, significantly enhancing thrust and maneuverability. This innovative design makes it easier to dock and navigate in tight spaces, offering a remarkable thrust increase of 10 kgf or more compared to traditional models.

Key Features:

• High Thrust for Large Vessels: Available in 250 kgf for boats from 20-26 meters and 270 kgf for those from 23-30 meters.
• Dual Propeller Design: Opposite rotation of the propellers enhances thrust and control.
• 24V Power Supply: Operates on a 24V electrical system, with a 48V motor option to meet specific requirements.
• 300 mm Tunnel Diameter: The large tunnel diameter ensures smooth and efficient operation.
• Thrust Increase: Provides a thrust increase of 10 kgf or more, improving performance and maneuverability.

Specifications:

• Voltage: 24 V

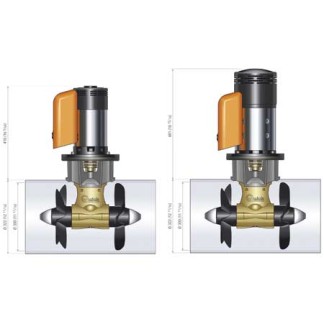

• Tunnel Diameter: 300 mm
• Power: 10 kW
• Thrust: 250 kgf
• Fuse: 2x7.5 A
• Boat Length: 20-26 m

• Thrust: 270 kgf
• Boat Length: 23-30 m

The Quick BTQ 300 Bow Thruster provides exceptional power and efficiency for larger vessels, ensuring ease of navigation and docking in tight spaces and adverse conditions. With its innovative design, enhanced thrust performance, and reliability, it is an indispensable addition for boats requiring superior maneuverability and control.
