Bennett Bolt 1212 300 x 300mm

Marine spare part and equipment for Bennett Bolt 1212 300 x 300mm.

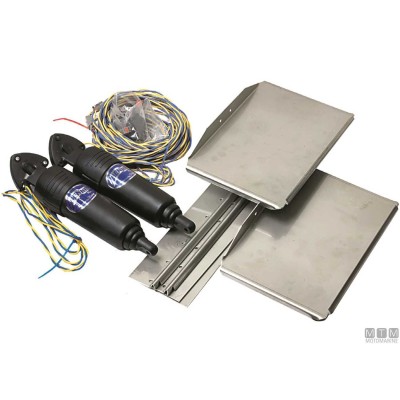

BOLT1212 – 12" x 12" Electric Trim Tab Kit

This complete Bennett trim tab kit operates on 12V and includes two actuators and two stainless steel trim tabs. It's specifically designed for boats measuring between 5.8 and 7.3 meters. Please note that the control panel must be ordered separately.

Key Features:

• Incredibly durable and reliable electric trim tab systems
• Lifetime warranty on electric actuators
• Waterproof design ensures smooth operation for years
• Robust construction designed for longevity
• Quick and easy installation
• Various control options, trim tab sizes, and mounting options available

Product Specifications:

• Vertical space required at the stern:
• Fixed upper hinge (BEA2000): 13"
• Adjustable upper hinge (BEA3000): 6.39"
• Travel: 2.5"
• Length: 13.25"
• Voltage: 12V
• Connectors: Deutsch, Series DT, 13A
• Working Forces:
• Actuation force: 750 lb.
• Return force: 750 lb.
• Current consumption:
• Actuators: 20 amperes maximum current
• Steering control: 20 amperes maximum current
• Control unit / Relay module: 20 amperes maximum current
• Included Components:
• (2) Stainless steel trim tabs and mounting plates
• (2) 20-foot harnesses with waterproof connectors (BAW2020)
• (2) 12-volt actuators with 6-foot harnesses and waterproof connectors (BEA2000 or BEA3000)

This trim tab kit is an excellent choice to enhance your boat's performance and ensure a smooth ride.
