Anchor Windlass Quick Dylan 1500W - without Drum - 12v 1500wt - 10mm chain
- Stock: En stock
Dylan DR4 Vertical Anchor Winch - Low Profile
The Dylan DR4 vertical anchor winch is a robust anchor winch designed with a combination of bronze and stainless steel traction components. It features an integrated chain counter sensor and a manual free-fall system, ensuring efficient operation.
Additionally, it includes a manual emergency lift system and a pressure lever for enhanced safety. The unit comes complete with a control box and handle, while its base and housing are constructed from stainless steel and hard anodized aluminum, providing durability and corrosion resistance. The motor is rated IP67, offering water protection.
Key Features:
- Base made of anodized aluminum and stainless steel with an integrated chain tube.
- Stainless steel drum (AISI 316) for increased strength.
- Gypsy equipped with a chain counter sensor for precise monitoring.
- Pressure lever and inspection cover for easy access and maintenance.
- Manual free-fall system for quick anchor deployment.
- Manual emergency lift system for reliable operation in critical situations.
- Includes a relay box and gypsy, available with or without a drum.
- Waterproof motor rated IP67 for protection against water ingress.

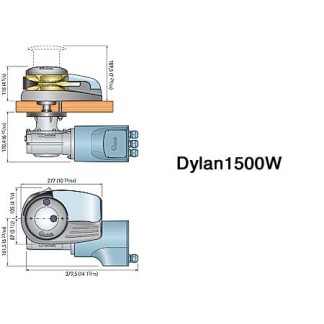

Specifications for Dylan DR4 1512 - Gypsy Only:
- Suitable for boats from 10m to 16m (33-53 ft).
- Drum: Not included.
- Motor power: 1500 W.
- Input voltage: 12 V.
- Maximum thrust: 1100 kg.
- Maximum working load: 400 kg.
- Working load: 135 kg.
- Chain speed at working load: 19 m/min.
- Current consumption at working load: 150 A.
- Cover thickness: 25-50 mm.
- Weight: 23.7 kg.
- Gypsy size: 10 mm.
This winch is an excellent choice for boat owners seeking a reliable and high-quality anchoring solution. With its comprehensive features and robust construction, the Dylan DR4 vertical winch ensures both performance and safety on the water.
