Bowman DC90-YAA

Marine spare part and equipment for Bowman DC90-YAA.

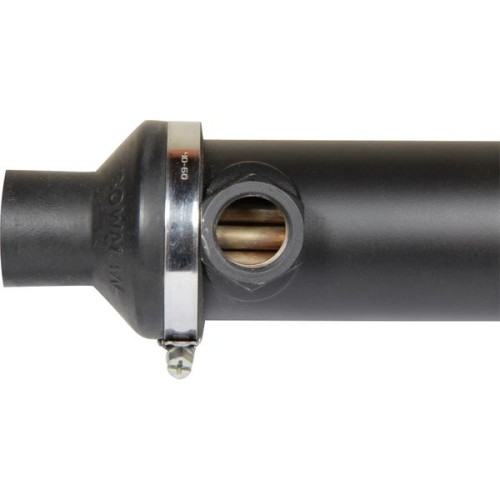

Bowman DC90-YAA Tubular Oil Heat Exchanger

The Bowman DC90-YAA tubular oil heat exchanger is expertly designed for high-efficiency engine oil cooling or gearbox oil cooling. Its compatibility spans multiple engines, including:

• BMC Leyland 498 (3.81)
• BMC Leyland 698 (5.71)
• Ford FSD-425-2401E
• Mercedes OM617

This model serves as a replacement for the Thornycroft 54382296 oil cooler, ensuring seamless operation and outstanding performance.

Key Features and Specifications

• Length: 314mm (including end caps), 235mm (excluding end caps)
• Operating Temperature: Up to 125°C
• Made By: Bowman
• Country of Origin: United Kingdom
• Compatible Gearboxes: Suitable for transmissions up to 200HP - 150kw
• Connections: Oil: 1/2" BSP female, Raw water: 22mm via neoprene caps
• Maximum Power Capacity: 80HP (60kw)
• Internal Oil Volume: 160ml
• Internal Water Volume: 240ml
• Maximum Working Pressure: Oil: 30 Bar, Water: 2 Bar
• Model: DC90
• Maximum Raw Water Flow: 60 LPM
• Replaces: Thornycroft 54382296
• Compatibility: BMC Leyland 4/98 (3.81), 6/98 (5.71), Ford FSD425 & 2401E, Mercedes OM617.

Upgrade to the Bowman DC90-YAA for unparalleled cooling efficiency and reliability in your engine and gearbox systems. Optimize performance and extend the lifespan of your machinery with this high-quality product, tailored to meet the demands of modern automotive applications.
