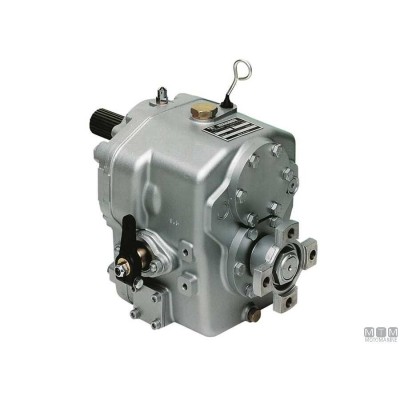

Technodrive TMC260 2.47

Marine spare part and equipment for Technodrive TMC260 2.47.

Introducing the Technodrive TMC260 2.47 Marine Gear Unit, a sophisticated piece of engineering designed to elevate your boating experience. Equipped with mechanical cone clutches that engage through a servo mechanism, this gear unit prioritizes silent operation while ensuring durability through generously sized bearings.

With a range of favorable gear ratios available in our selection menu, this gear unit boasts an impressive pleasure rating of 84 kW (112.65 hp) and a commercial rating of 61 kW (81.8 hp). It is capable of accommodating a maximum input speed of 5000 rpm and weighs a manageable 18 kg. The required oil volume is 1.20 liters, with ATF being the recommended oil type.

The TMC260 is specifically designed to work with propellers spinning to the right. For left-hand rotating propellers, the reverse gear must be set as the forward configuration. Its reduction ratios of 2.00 and 2.47 are exceptionally suited for both left and right-hand rotating propellers at full power, making the TMC260 an outstanding choice for twin engine setups.

Manufactured in Italy, the high-quality Twin Disc Technodrive TMC260 gear unit is built to endure a diverse range of marine diesel engines.

Specifications:

• Weight: 18 kg
• Maximum Input Speed: 5000 rpm
• Maximum Engine Capacity: 84 kW
• Forward Gear Ratios: 1.54, 2.00, 2.47, 2.88
• Reverse Gear Ratios: 2.00, 2.47

This marine gearbox combines reliability with exceptional performance, representing a significant upgrade for your marine equipment. Experience the difference with the Technodrive TMC260—where quality meets functionality.
